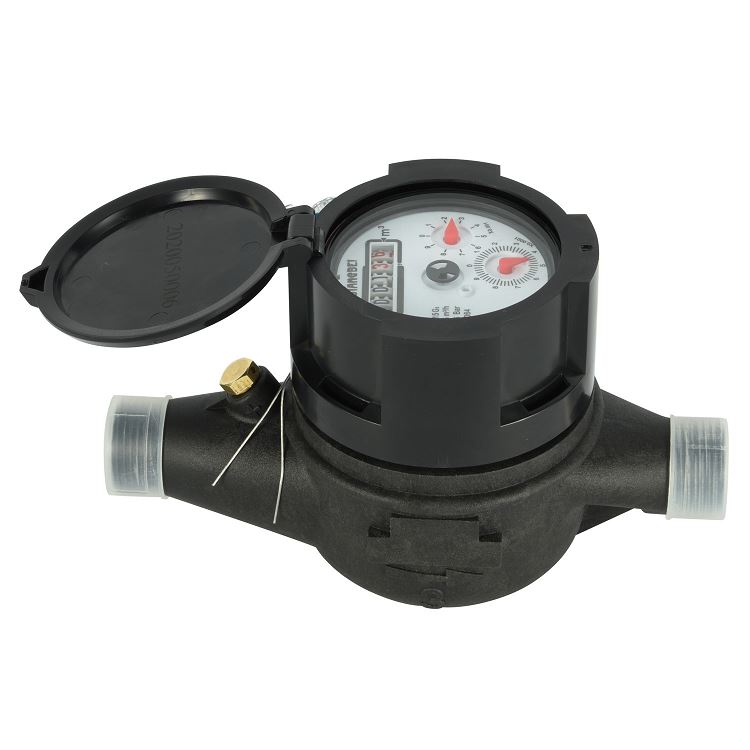

Plastic Water Meter

Multi Jet Dry Type Vane Wheel Plastic Water Meter Class C/R160

360 Degree Register Copper Can

Product Introduction:

LXSC-G2s (Dn15 mm) is an economic copper-can plastic water meter for residential application.  It uses the multi-jet principle to measure flow totals.  The gear train drives the register totalizer dials.  This plastic water meter is frequently used as a low cost solution for residential water measuring.



Features:

* Plastic body material is Nylon 66 or GV5H (a high pressure requirement).

* Lead-free.

* Brass body for your choice.

* Magnetic drive, lower transmission resistance.

* Magnetic shield, for external magnetic field protection.

* Copper can register, IP68 protection.

* 360 degree rotating register for a easy reading from different direction.

* Inlet strainer.

* Non return valve;

* Pulse output proportional to flow allows for remote flow totalizator.

* Complete solid lockable plastic shell for long lifetime to stop tampering.

* Water temperature: ≤50ºC for cold water meter.

*The register can be 6 rollers and 2 pointers or 7 rollers and 2 pointers.

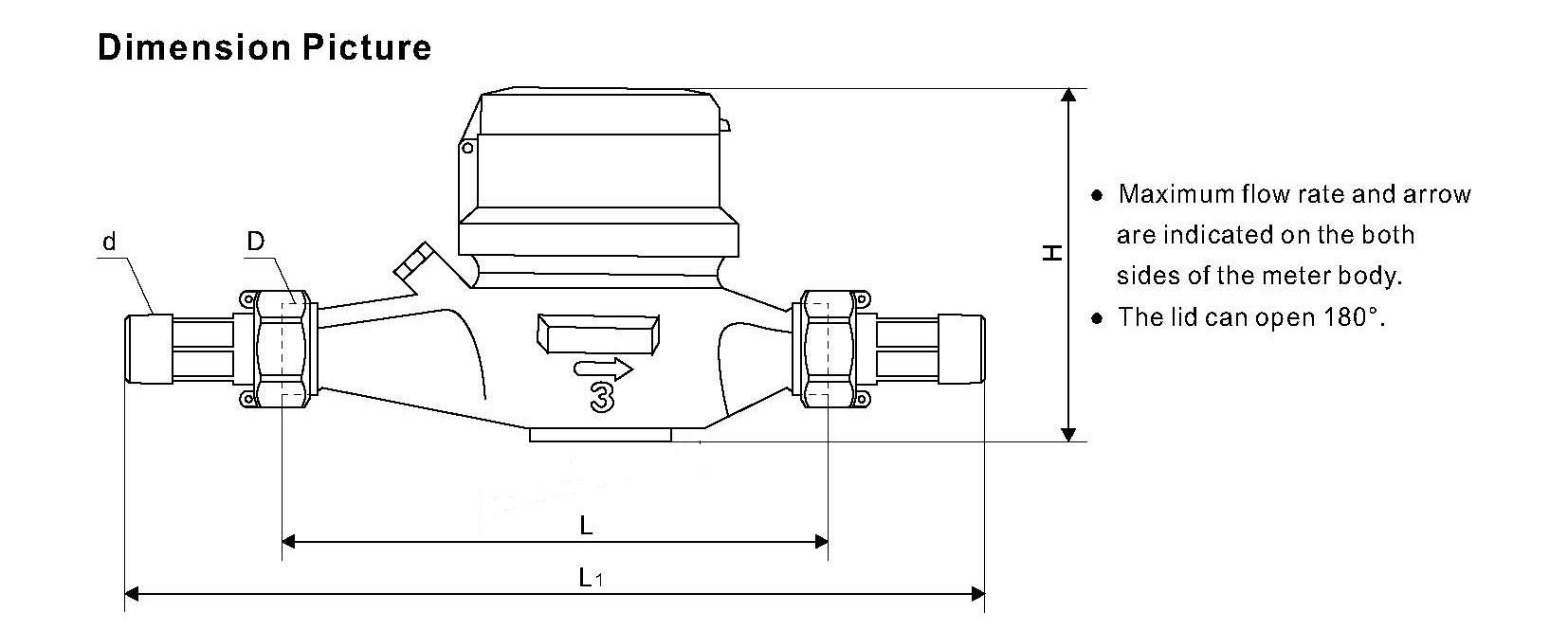

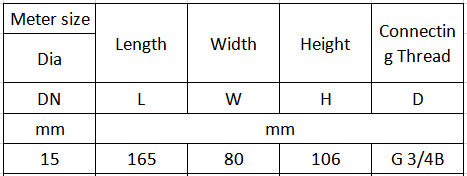

* Body length can be 165mm or 190mm.

* NPT or BSPT optional couplings.

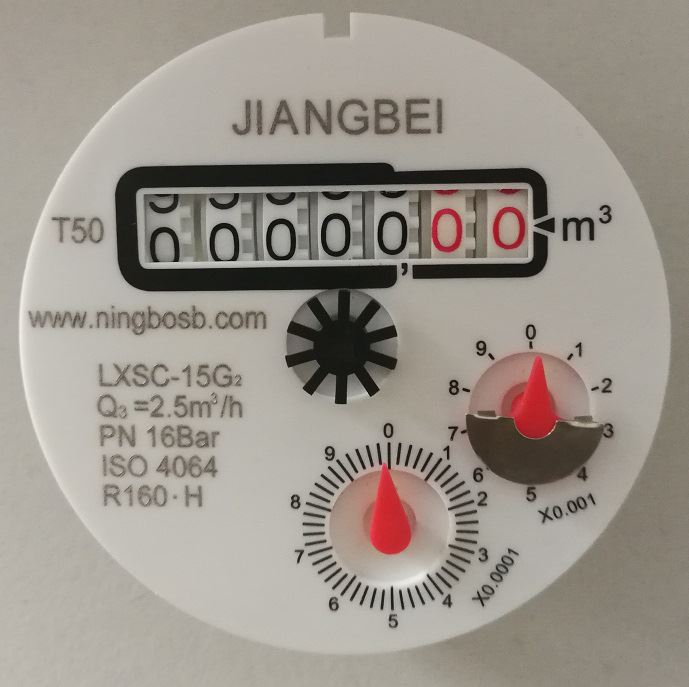

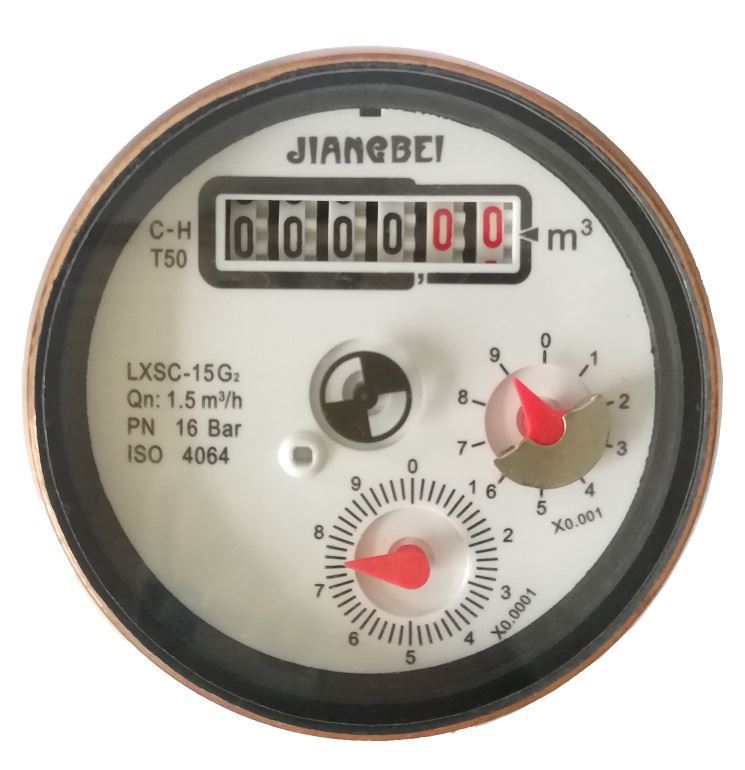

Dial Plate Design:

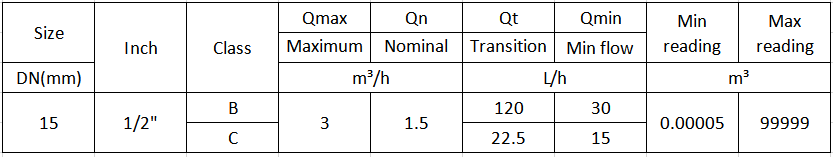

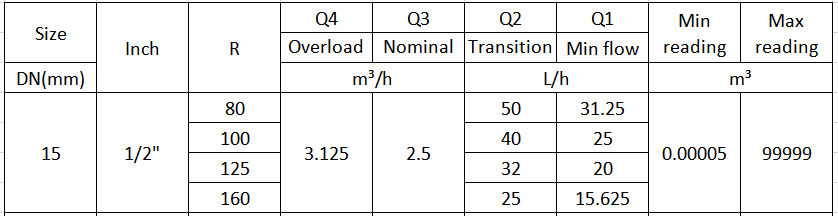

Flow Rates:
