Cold Water Meter

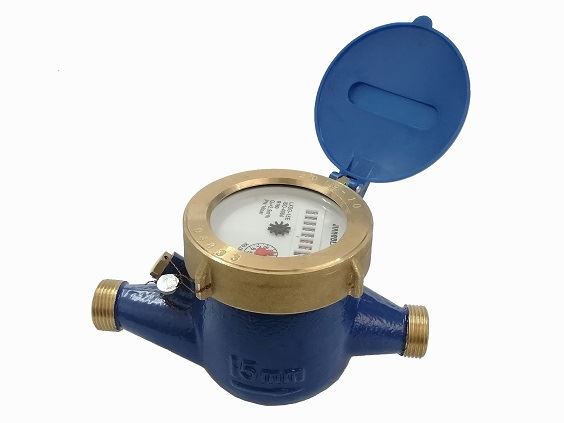

Multi-Jet Cold Water Meter (Dry Type)

（Class C, 8 Digits and 1 pointer）





Production Introduction:

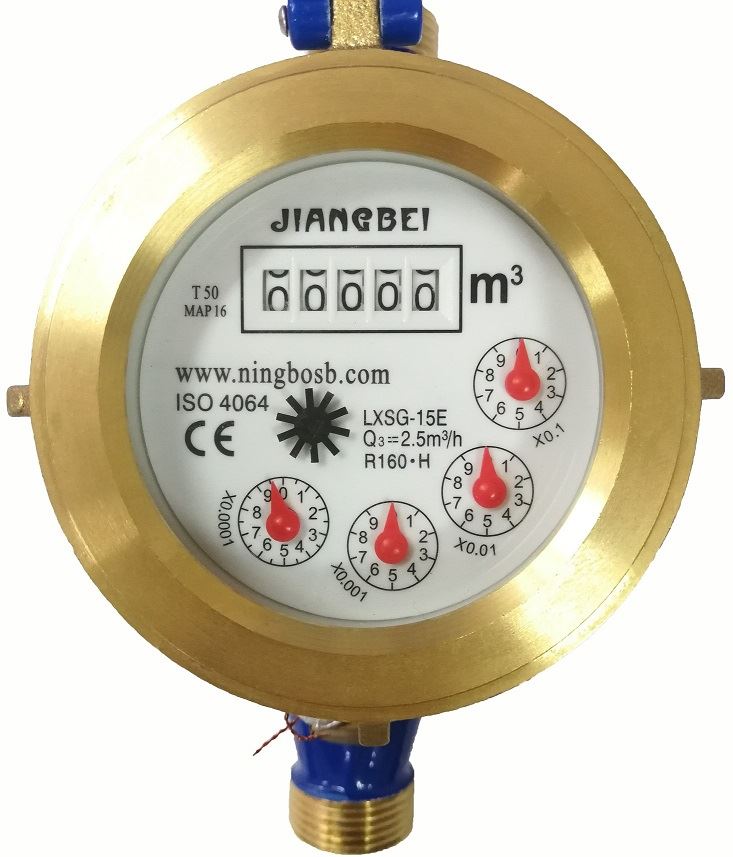

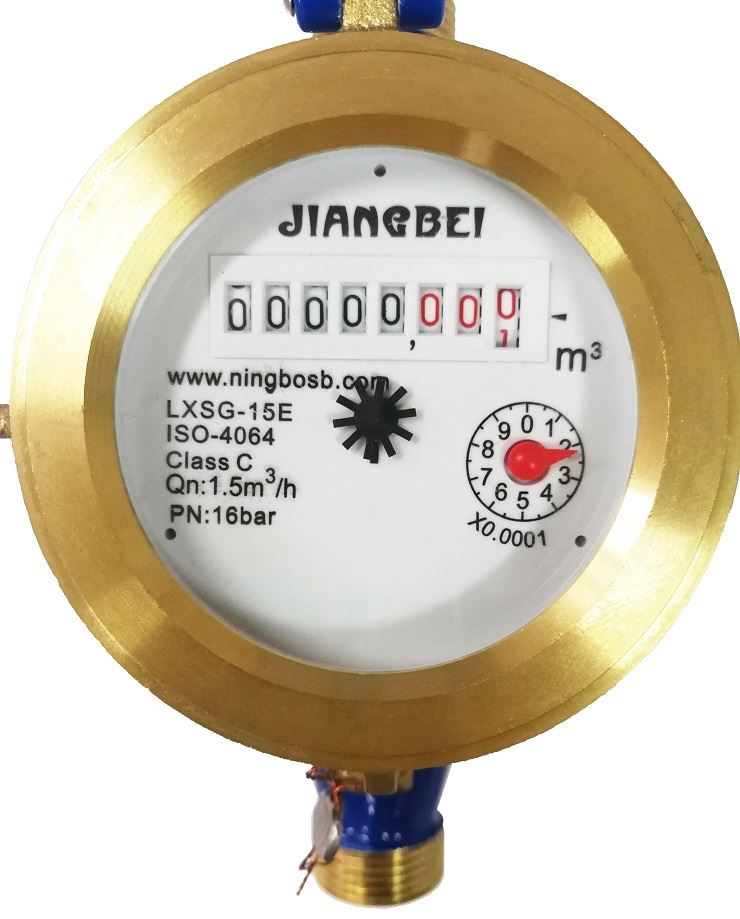

LXSG-E8 (Dn15mm to 65mm), a series of mechanical multi-jet cold water meter with sizes from 15mm to 65mm. It has 8 digits and 1 pointer for a easier reading. The accuracy can be Class C or R160.



Features:

* Multi-jet design.

* Horizontal installation.

* Magnetic transmission, anti-magnetic, can prevent external magnetic field interference.

*The dry counter is vacuum sealed, anti-condensation, and can keep clear readings for a long time.

* Using high-quality materials, stable and reliable performance

* The series has strong versatility, easy to replace and maintain

* The metering accuracy is high. The technical indicators of the meter conform to ISO4064 Class B or Class C standards or R80, R100, R125 and R160 standards.

* The brass body can be original color or epoxy coated, also we have plastic, cast iron or stainless steel bodies.

* Suitable for cold water ≤50℃ or hot water ≤90℃

* Water pressure: ≤1MPa or 1.6MPa (10bar or 16bar)

* Available with non-return valve and inlet filter.

* Available with remote pulse output function according to user requirements.

 *The register can be 5 rollers and 4 pointers.









Accessories:
Each water meter has one set couplings optional: 2pcs tube, 2pcs nut and 2pcs gasket

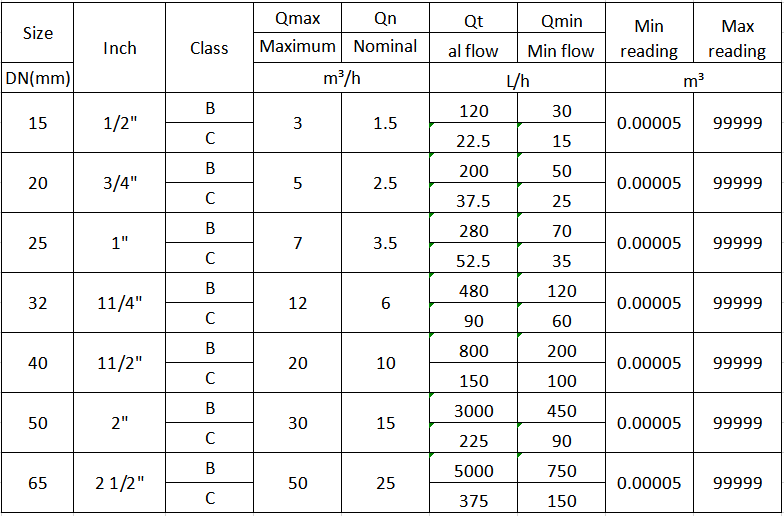

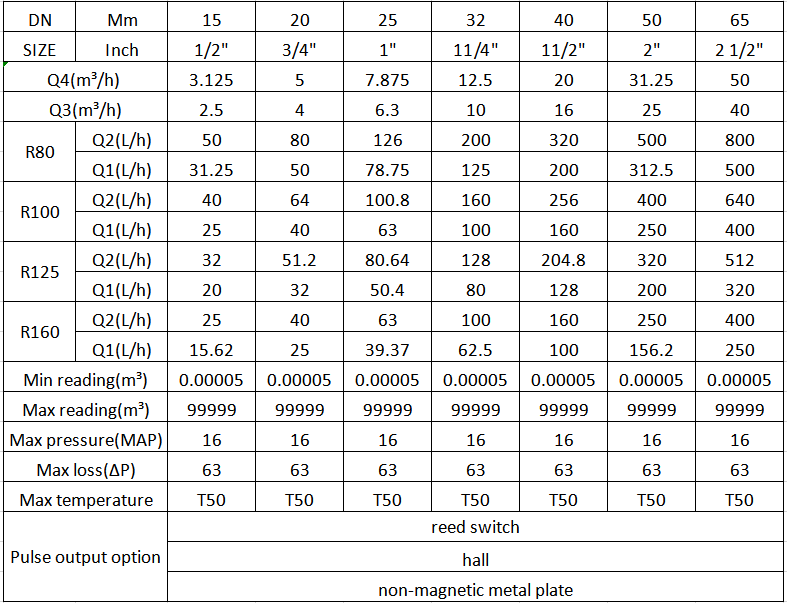

Technical Datas:

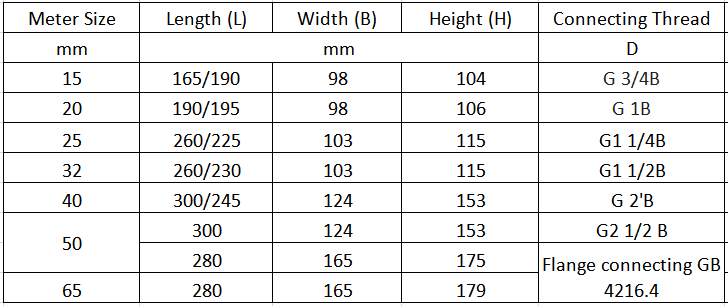

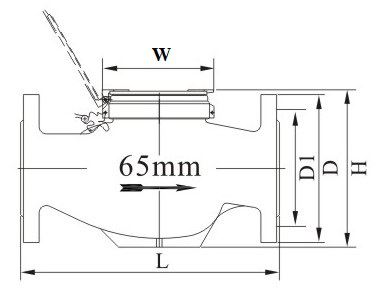

Dimensions:

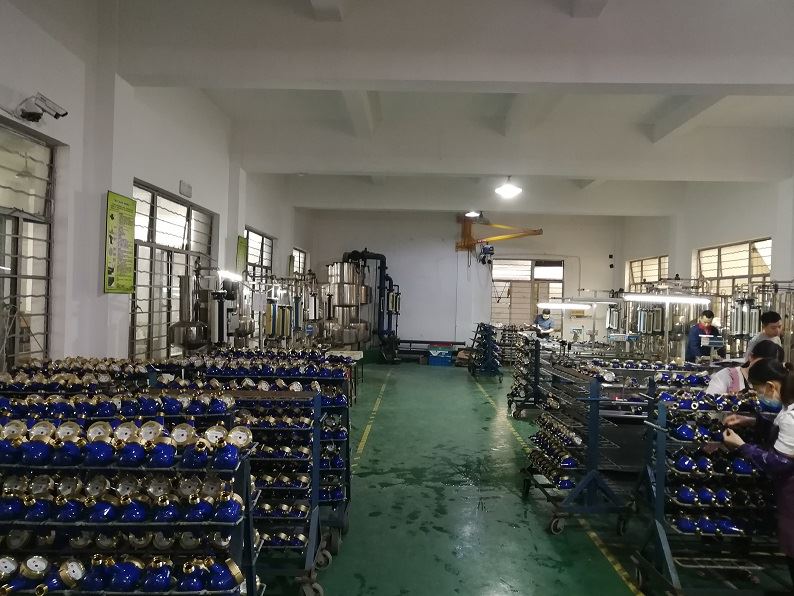

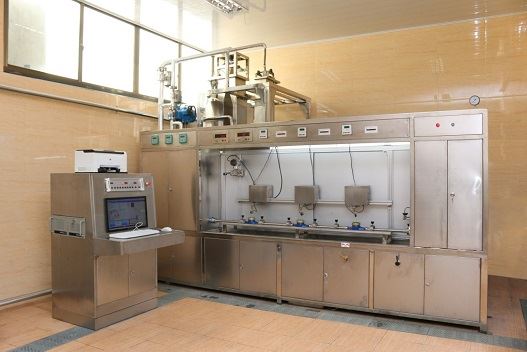

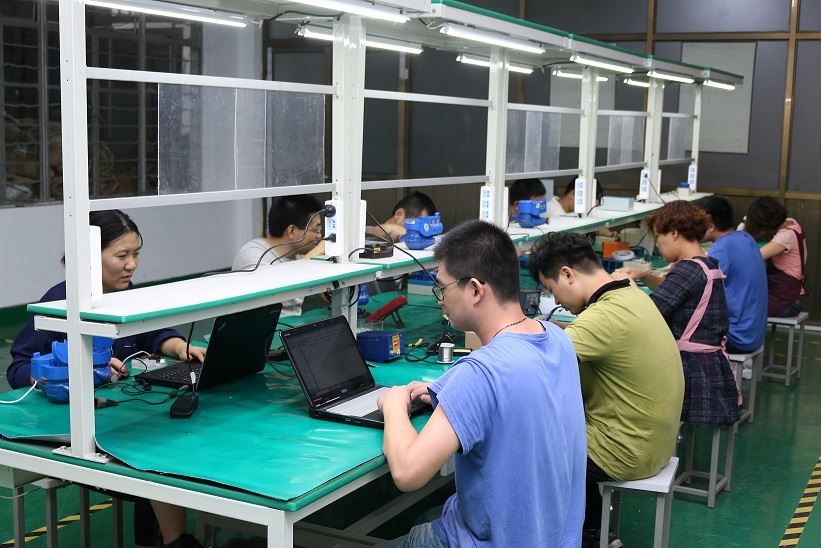

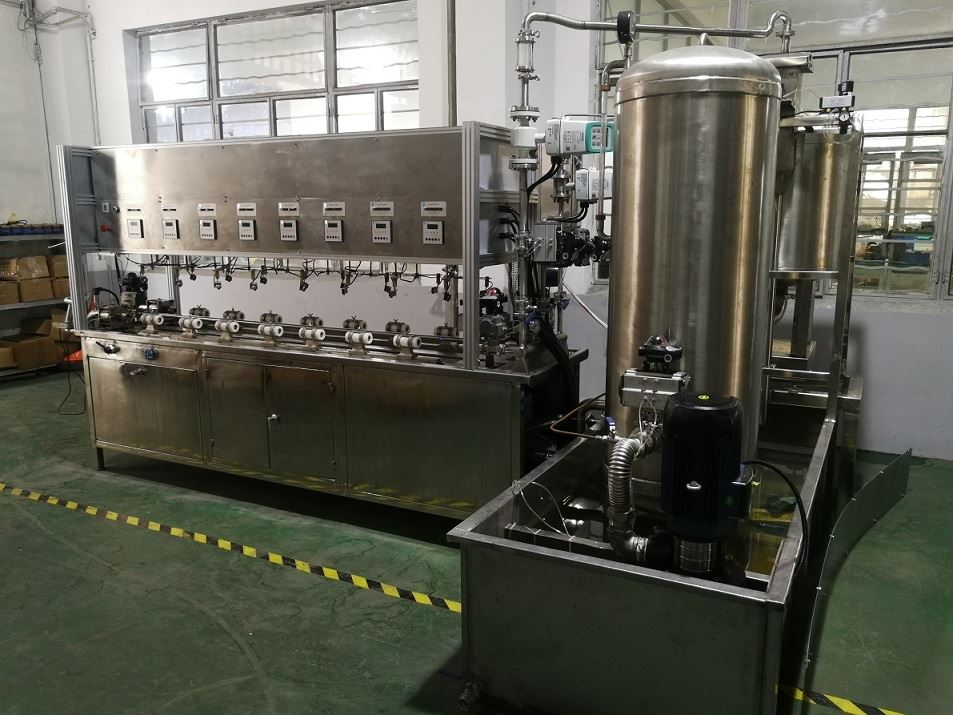

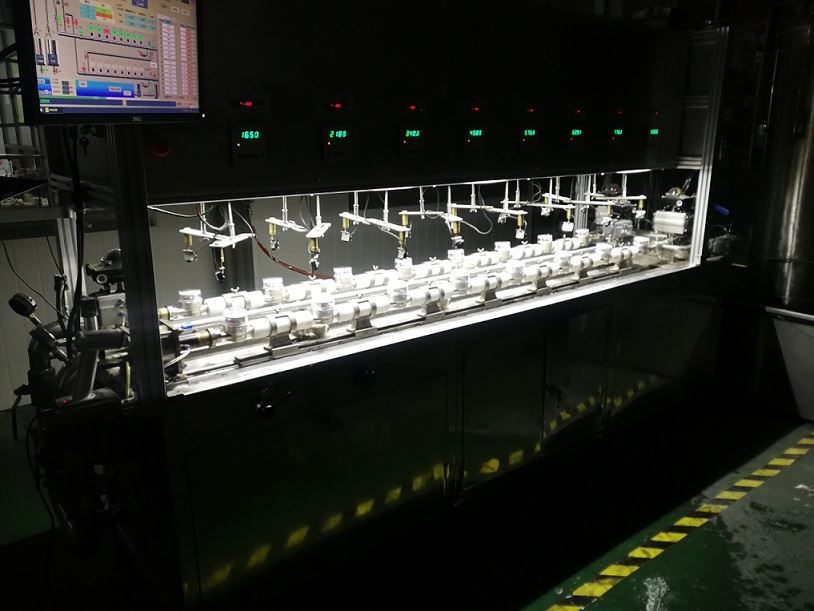

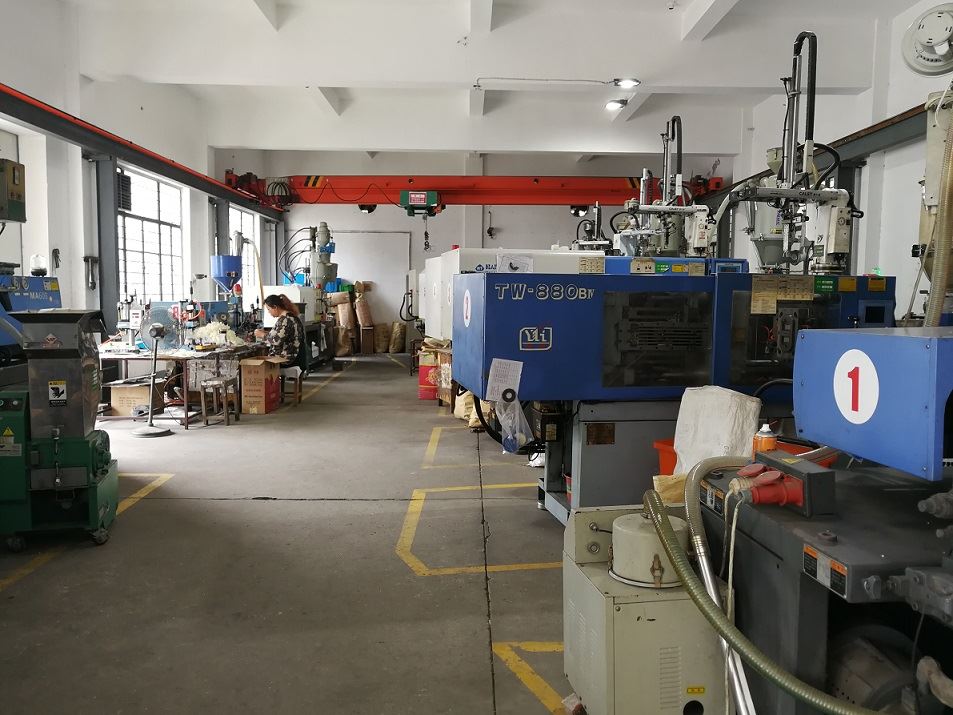

Facilities:
