Hot Water Meter

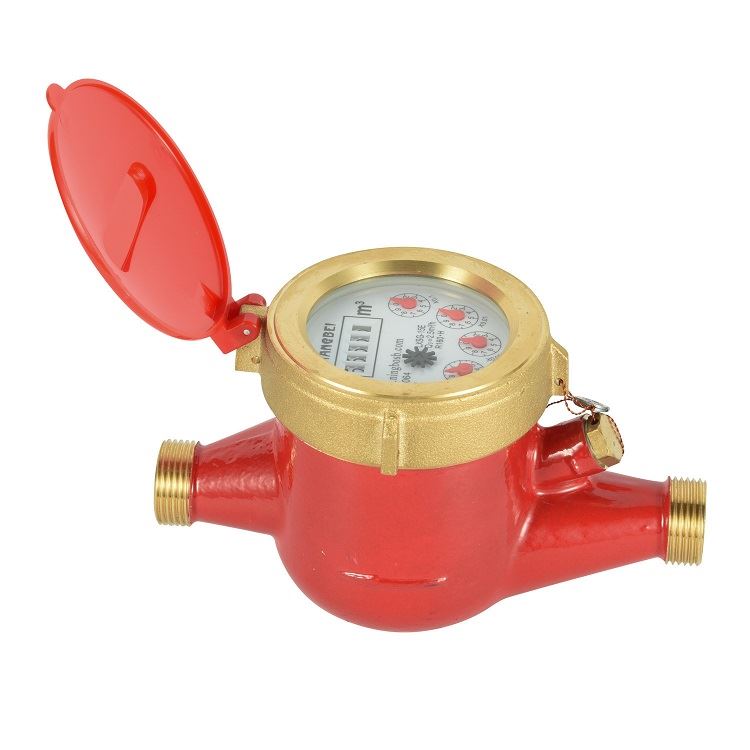

Multi-Jet Hot Water Meter

（Class C, Dry type)



Production Introduction:

LXSGR-E (Dn15mm to 65mm), is an impeller (turbine) hot water meter with mechanical transmission and and high precision super dry type totalizer. All parts are made of high quality materials and resistance to ensure trouble-free and  reliable operation, offering high resistance to potable water.



Features:

* Magnetic transmission, magnetic shield.

*The hermetically sealed register can keep clear readings for a long time.

* Using high-quality materials, stable and reliable performance

* The series has strong versatility, easy to replace and maintain

* Body material: brass.

* Suitable for hot water ≤90℃

* Water pressure: ≤1MPa or 1.6MPa (10bar or 16bar)

* Non-return valve and inlet filter (optional).

* Pulse output function (optional).

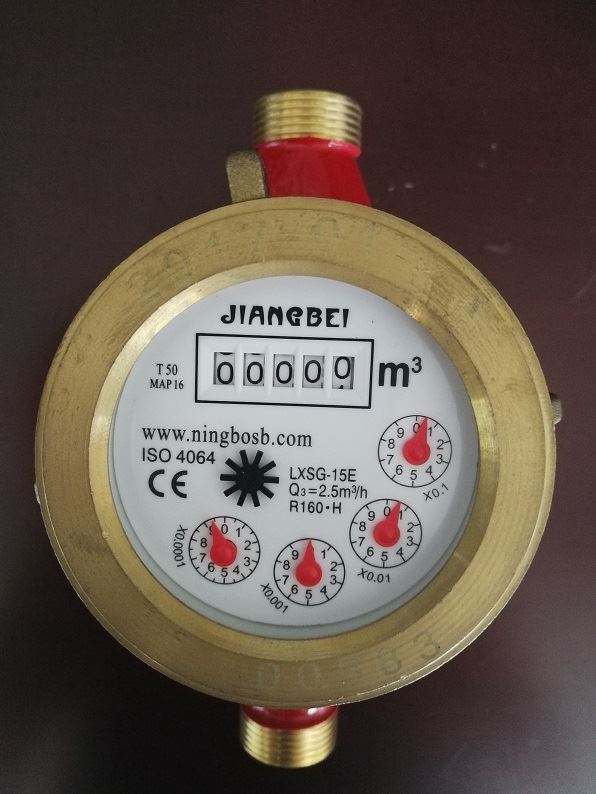

 *The register can be 5 rollers and 4 pointers or 8 rollers and 1 pointer.





Accessories:
Each water meter has one set couplings optional: 2pcs tube, 2pcs nut and 2pcs gasket

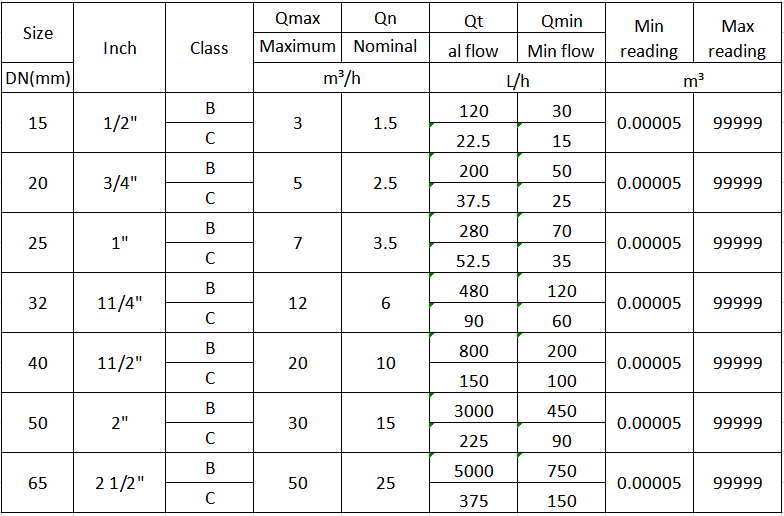

 Specification:

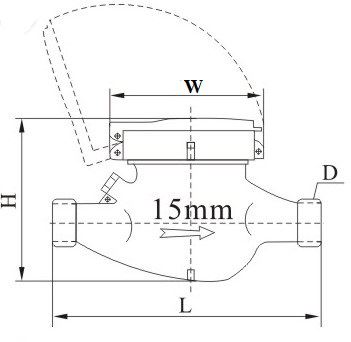

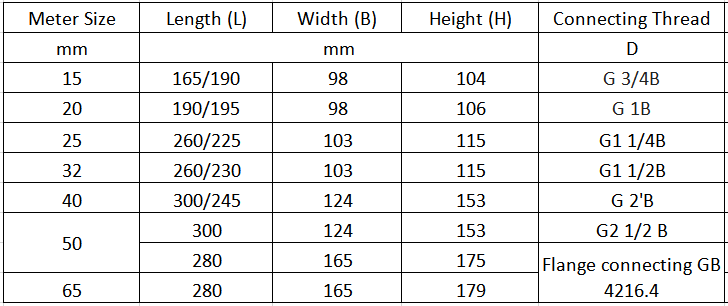

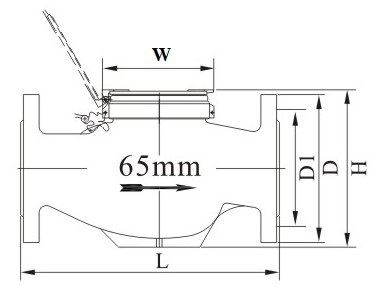

Dimensions:
