Residential Water Meter

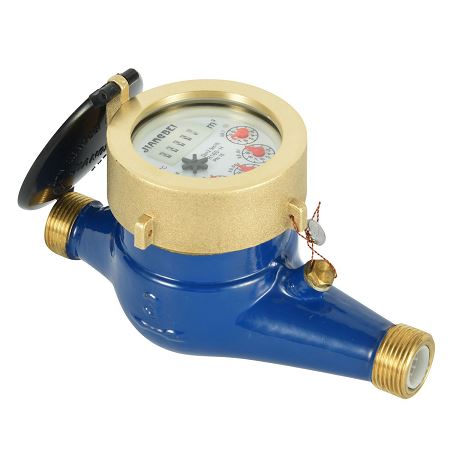

Small Body Multi Jet Residential Water Meter

Class C/R160 (Super Dry Type)

Product Introduction:

LXSG-E5 (Dn 15mm）is an Italian style dry type residential water meter with small water meter body. It’s a rotary vane wheel residential water meter in which the metering mechanism is driven by magnetic elements and the counter does not contact the water to be metered. Clear reading, convenient meter reading, accurate measurement, durable.

Features:

* Slight meter body, with external adjustment device.

* Accuracy: Class B or C.

* Magnetic drive, lower transmission resistance, frog-resistant.

* Magnetic shield, for external magnetic field protection.

* Evacuated and sealed dry dial register ensures clear reading.

* Internal strainer, inlet strainer for selecting.

* Non return Valve (optional).

* Meter body: Brass.

* Pulse output (reed switch; hall or non-magnetic metal plate).

* The register can be 5 rollers and 4 pointers.

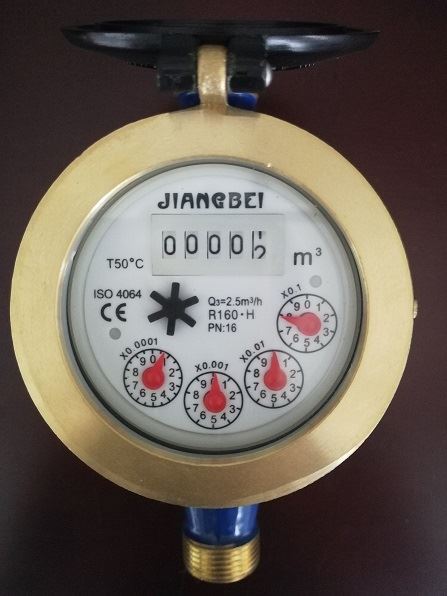

Dial Plate:

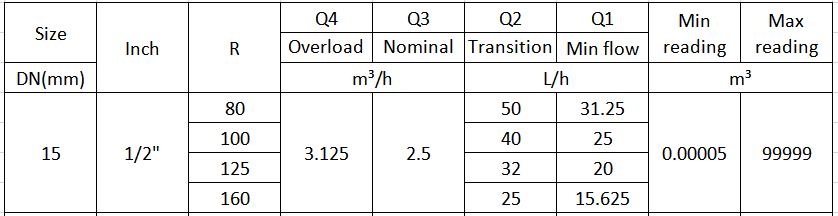

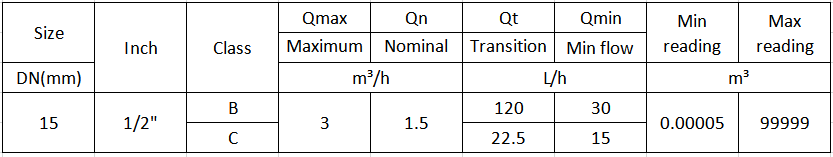

Technical Datas:

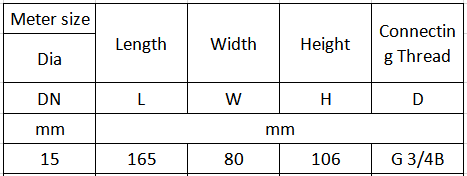

Dimensions：

Why Choose JIANGBEI Residential Water Meter?



1. 25 Years’ manufacturing experience of different kinds of residential water meter, with strict management system of ISO 9001, ISO14001 and ISO 45001.



2. 3 Years’ warranty. If you have met any quality problems for our residential water meter, please just inform us. A fast and good after-service would be provided to you!



3. JIANGBEI residential water meters are exactly made according to ISO 4064/CE/EN 14154 (MID)/OIML R49 standard, and now we are applying for MID certification.



4. JIANGBEI has the testing laboratory for residential water meter, which can test water meters in different temperature, different pressure, etc.. Now we are applying for CNAS certification for it.



5. JIAGBEI has the automatic test bench for woltman water meters in sizes from 50mm to 600mm, which can test water meters by weight, volume and comparison.



6. You can check the testing or the results of each single residential water meter on-line by JIANGBEI newly designed unique automatic test bench.



7. According to your different project requirements, JIANGBEI will give you the best residential water meter solution by our professional technical team and long experience in residential water meter field.



Trust me! You will be satisfied by our perfect residential water meter and after-sale service, and you will never get complaint from your customers.
