Home Water Meter

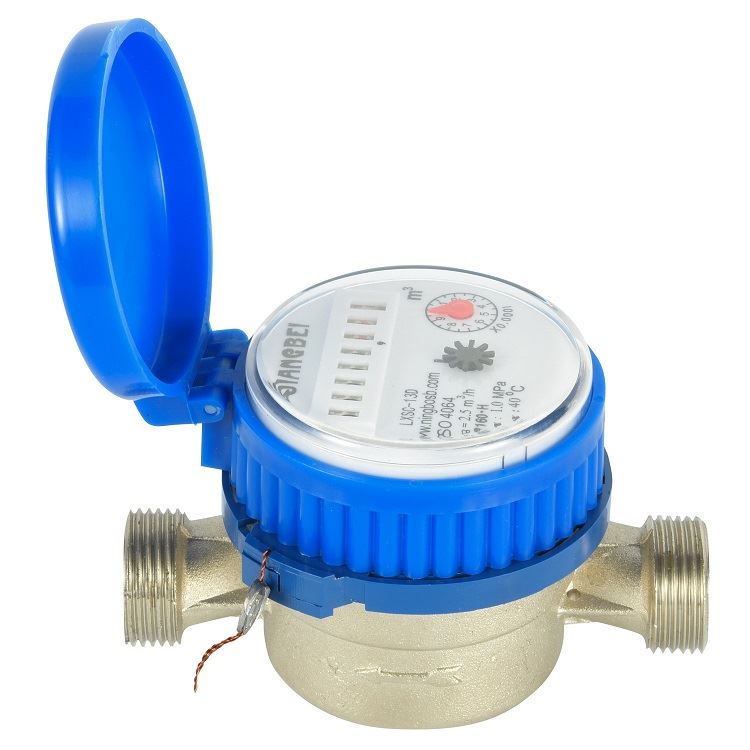

Brass Single Jet Dry Type Vane Wheel Home Water Meter

Product Introduction:

LXSC-D is a single-jet super dry home water meter for residential application in sizes 15mm-25mm for cold water.

Features:

* Small size and light weight.

* Magnetic transmission, anti-magnetic, the watch can prevent external magnetic field interference.

* The dry counter adopts vacuum sealing, anti-condensation and atomization, which can keep clear readings for a long time

* The counter adopts 320° and 360° rotation for easy reading.

* The measurement accuracy is high, and the technical indicators of this table meet the ISO4064 B or C standard or R80, R100, R125 and R160 standards;

* The copper case can be natural color, epoxy coating or nickel coating;

* Inlet strainer.

* Pulse output function.

* It can be applied to cold water ≤50℃ or hot water ≤90℃.

* Water pressure: ≤1MPa or 1.6MPa (10bar or 16bar)

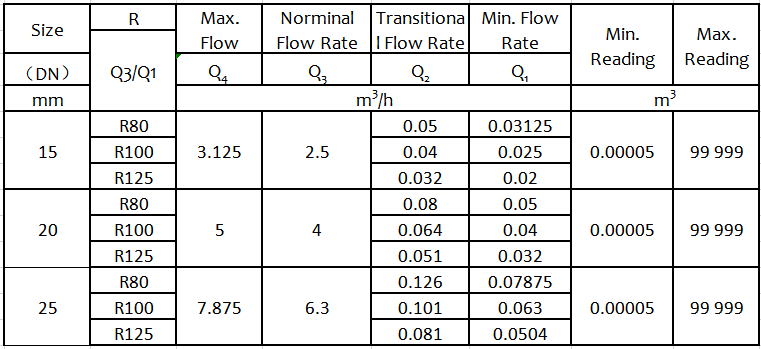

Specification:

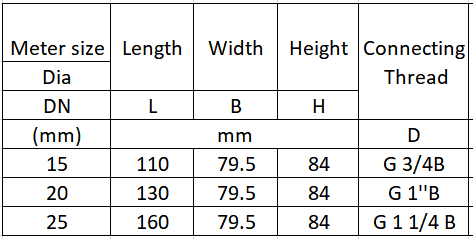

Dimensions:
