Analog water meter

Multi Jet Wet Type Analog Water Meter

(Class C/R160)





Product Introduction:

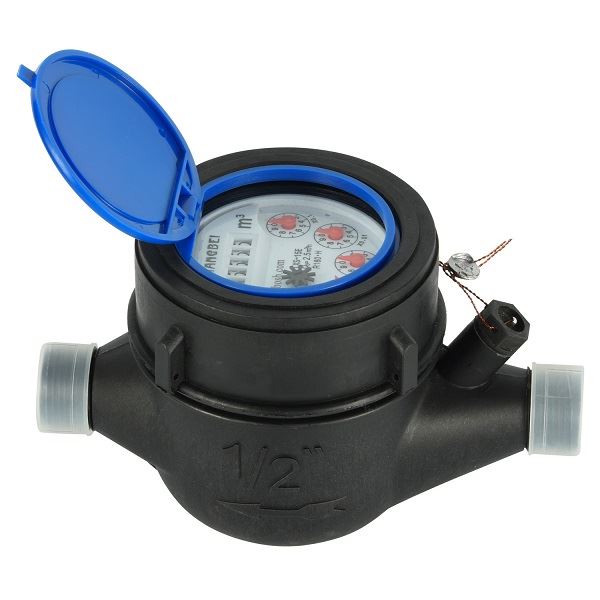

LXS-Es2 (Dn 15mm-50mm) is a plastic turbine wet analog water meter with 360 degree rotating lid for residential application in sizes 15mm-50mm for cold water. This plastic water meter is frequently used as a low cost solution for residential water measuring.





Features:

*360 degree rotating lid for a easy reading in different directions.

*Wet counter, small starting flow.

*Plastic body material is Nylon 66 or GV5H (a high pressure requirement)

*Lead-free.

*Meter body: Brass, plastic, iron and stainless steel for selecting.

* Inlet strainer.

*Non return valve

*Pulse output can be equipped as requested.

*Water temperature:≤T50.

*Working pressure: ≤1.0 Mpa or 1.6 Mpa.

*Pressure loss: △P63

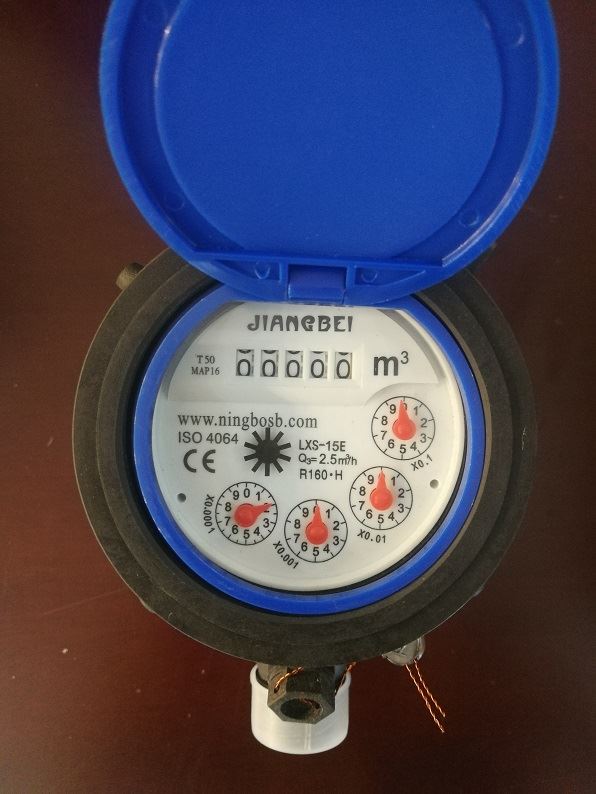

*The counter can be 8 digits and 1 pointer or 5 digits and 4 pointers.

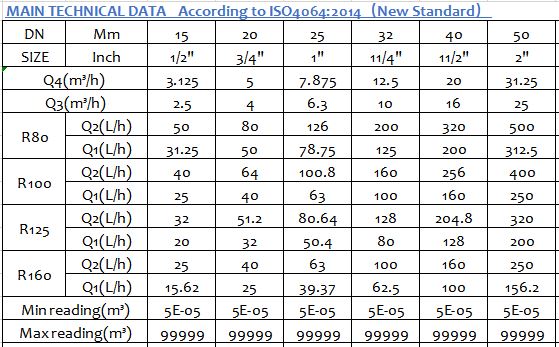

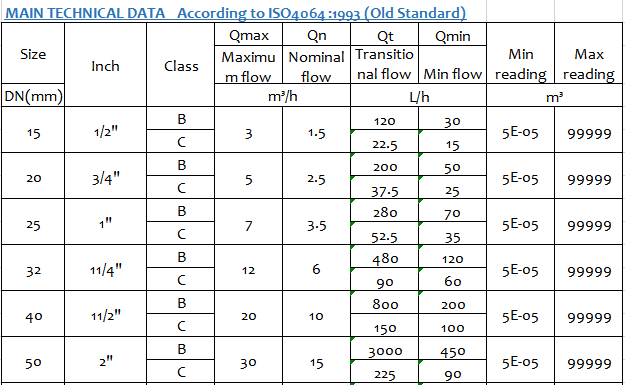

Specification:

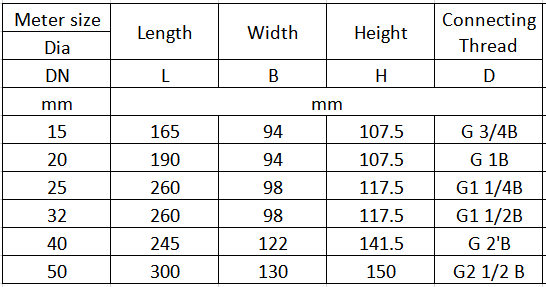

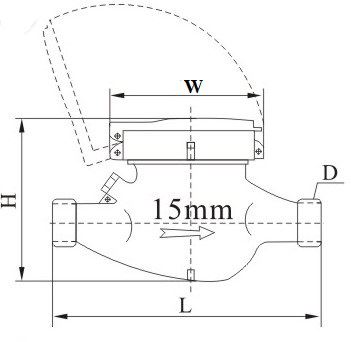

Dimensions:
