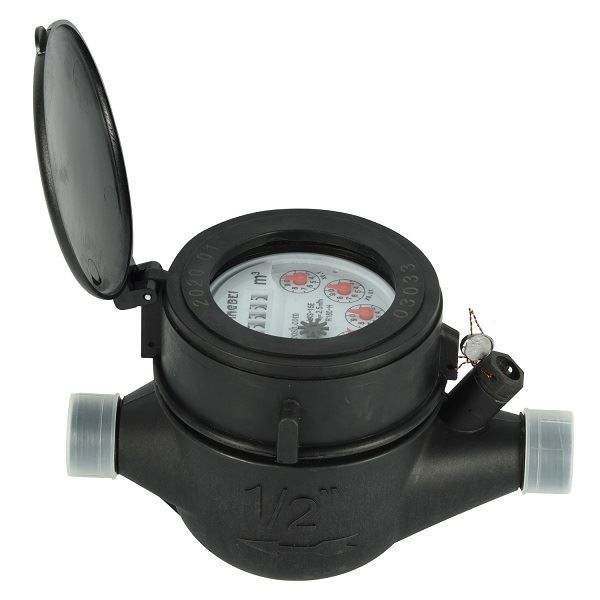

Plastic Wet Water Meter

Multi Jet Plastic Wet Water Meter

(Class C/R160)

Product Introduction:

LXS-Es a plastic turbine wet water meter for residential application in sizes 15mm-50mm for cold water. This plastic water meter is a low cost residential water measurement.



Features:

* Multi Jet.

* Plastic body, made by Nylon 66.

* Wet dial register.

* Low starting flow rate.

* No lead.

* High accuracy to be Class C.

* With plastic or brass connectors and nuts.

* Can be equipped with pulse output.

* Dust-resistant, easy-reading and long lifetime.
* Internal strainer, inlet strainer for selecting.

* All the materials in contact with water are meeting potable water standard.
*Mechanical transmission movement equates to maximum reliability.



Working Conditions:
Water temperature: ≤50ºC for cold water meter

Water pressure:   ≤1MPa or 1.6MPa optional
                 (10bar or 16bar optional)

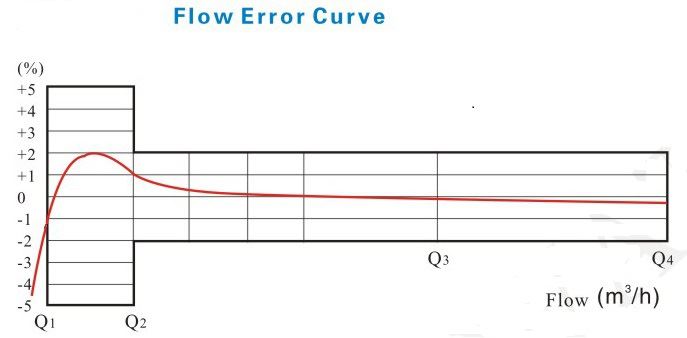

Maximum Permissible Error:

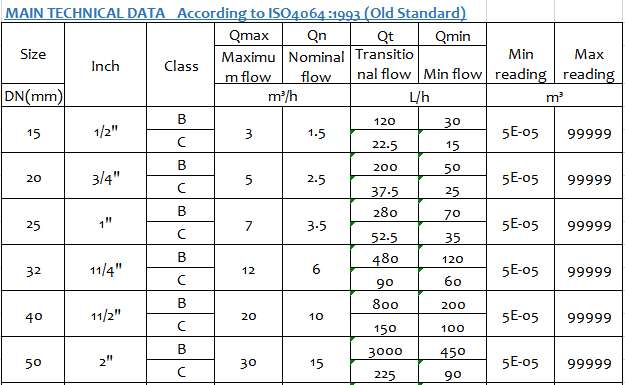

Flow Rates:

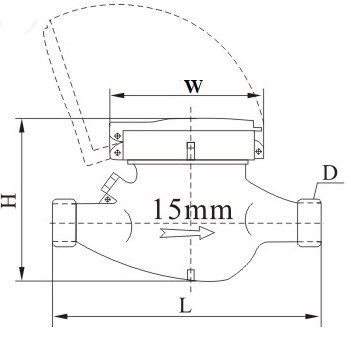

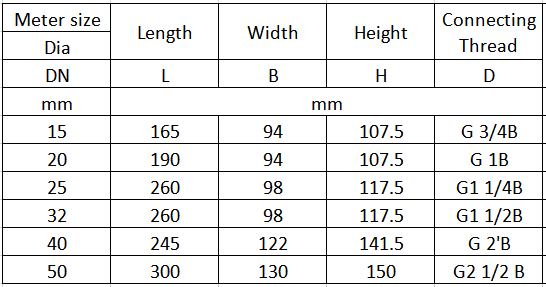

Dimensions:
