Water Volume Meter

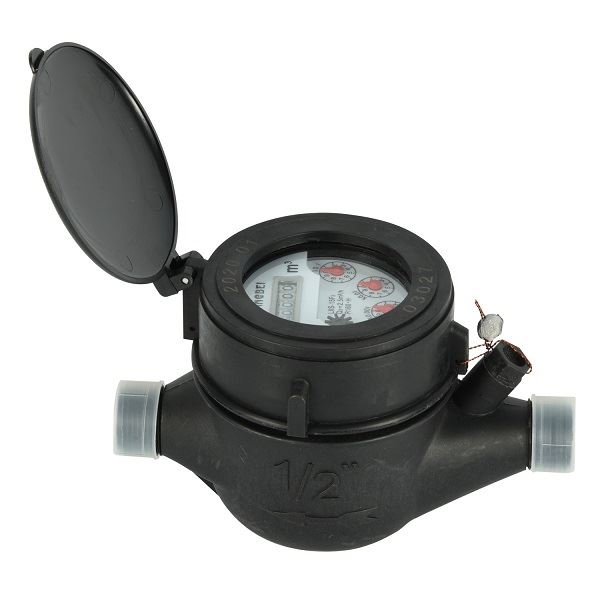

Multi Jet Liquid Sealed Vane Wheel Water Volume Meter Class C

Product Introduction:

LXS-Fs is a turbine liquid sealed water meter for residential application in sizes from 15mm to 50 mm for cold and hot potable water and meets the international standard ISO4064 Class B, Class C, R80, R100, R125 or R160 standard for horizontal installation.

Features:

* All the materials in contact with water are meeting potable water standard.

* Mechanical transmission movement equates to maximum reliability.
*The chamber of the rollers is liquid filled sealed for protecting the inner parts from the moisture and dust penetration.
* Sealed wet dial register.
* Internal strainer, inlet strainer for selecting.
* External regulating device

* Particularly suited in lower quality water.

* Meter body: Brass, plastic, iron and stainless steel for selecting.

* Non return valve to avoid the reserve flow rate (optional).

* Pre-equipped pulse output (reed switch; hall or non-magnetic metal plate).

* Water temperature: ≤50ºC for cold water meter;

* Water pressure:   ≤1MPa or 1.6MPa optional (10bar or 16bar optional).

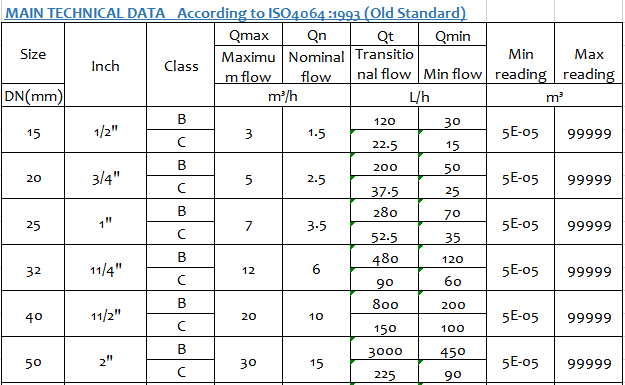

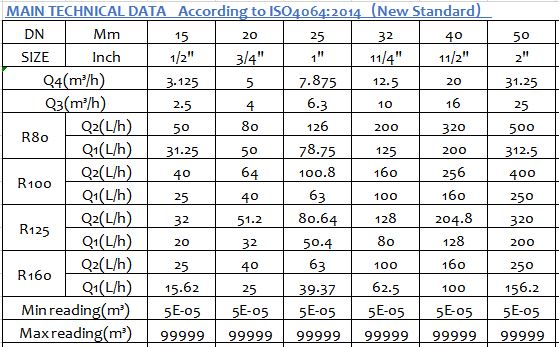

Specification:

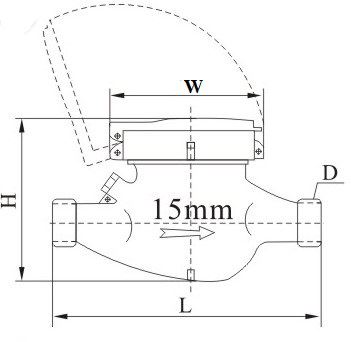

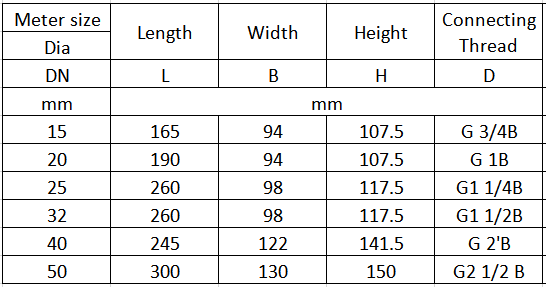

Dimensions:
