Water Meter Gauge

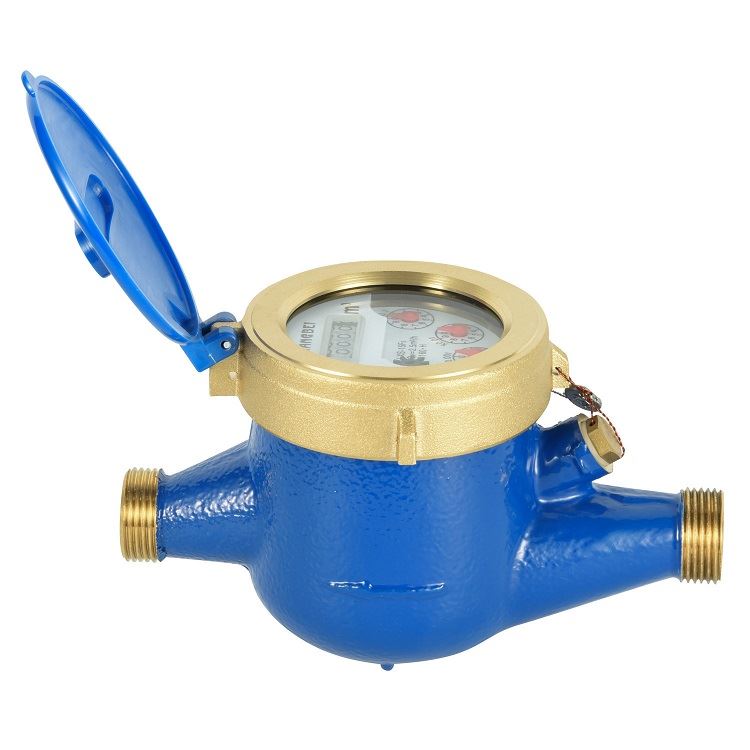

Multi Jet Liquid Sealed Water Meter Gauge

Product Introduction:

LXS-15F~65F are vane wheel multi-jet liquid-sealed water meter gauges. The meter gears or the complete register used for meter reading is all sealed with a certain concentration of glycerin.

The clarity of the sealed and isolated register of the rotary vane wheel multi-jet liquid-sealed water meter gauge is not affected by the external water quality, and the remaining structural performance is the same as that of the wet water meter gauge.



Features:

* Horizontal installation.

* Multi-jet.

* Mechanical transmission

* The digital wheel of the register is encapsulated with special liquid, which can keep the reading clear for a long time.

* It has the advantages of small starting flow of wet water meter and clear reading of dry water meter, especially suitable for pipe networks with poor water quality

* Using high-quality materials, stable and reliable performance.

* The measurement accuracy reaches ISO 4064 Class C or R160.

* The same model of high-sensitivity water meter can be produced according to user needs.

* The brass body can be original color or eposy coating; in addition, plastic case, iron case and stainless steel case are available

* Applicable to cold water ≤50℃.

* Water pressure: ≤1.6MPa (16bar)

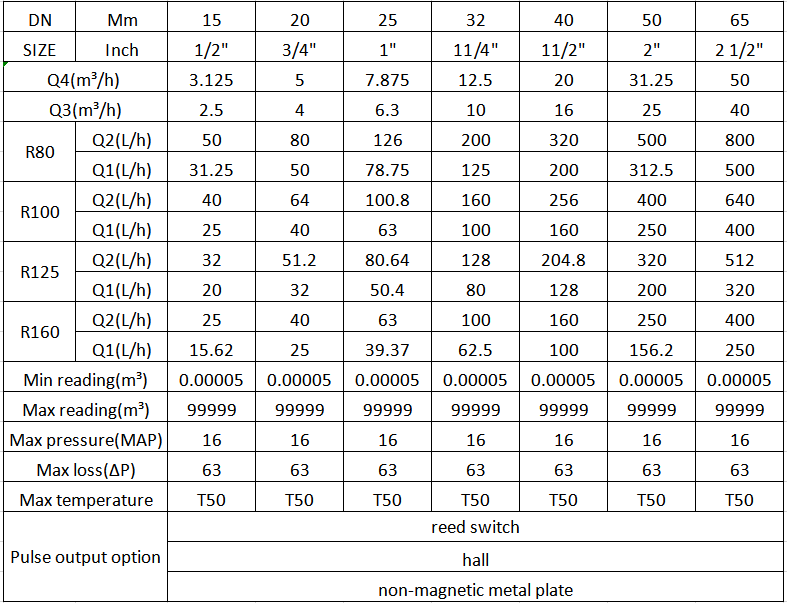

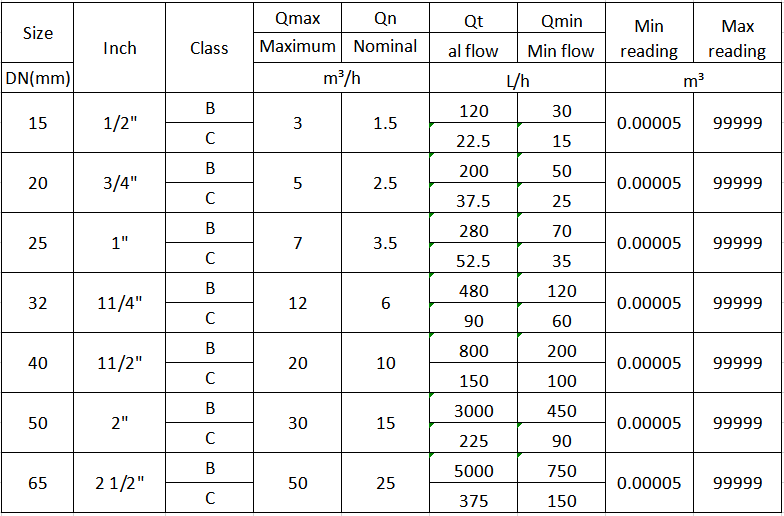

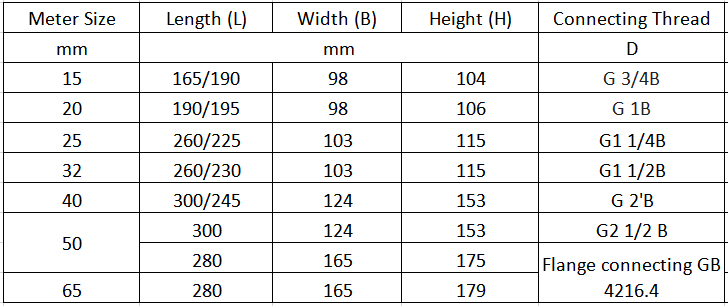

Specification:



Facilities:
