Magnetic Water Meter

Product Description

•The magnetic water meters we provide are made of high quality materials and have stable and reliable characteristics.

• Single jet.

• Brass body, nickel plated.

• Vacuum gland ensures that the dial is protected from haze and keeps readings clear during long-term use.

• The Water Meter's measurement accuracy meets ISO 4064 Class B standards.

• Internal or external adjustments are available.

• This water meter is small and light.

Application

magnetic water meter is designed to measure cold（hot) potable water volume water volume.

Standards

Complies with: ISO 4064(equivalent to GB/T 778-2007), MIDI14154.

Features

● magnetic water meter is dry dial, magnetically driven, and resistant to external magnet interference.

● D3-type is antimagnetic function

● Register can rotate not more than 360 for easily reading in any position

● Vacuum-sealed register, frost resistant, keeps clear reading for long time

Flow Technical data

TYPE	mm	Q3/Q1	Q4	Q3	Q2	Q1	Min	Max
			m³/h		L/h		m³
LXSC-13D/15D	15	80	3.125	2.5	50	31.25	0.00005	99999
LXSC-20D	20	80	5.0	4.0	80	50	0.00005	99999
LXSC-25D	25	80	7.875	6.3	126	78.75	0.00005	99999

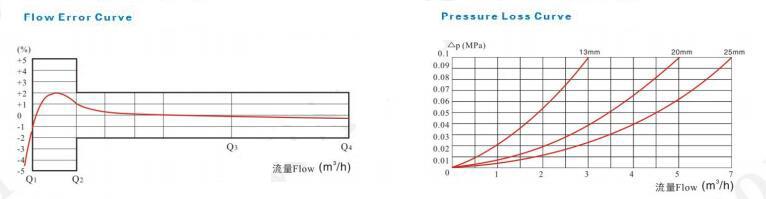

Maximum Permissible error

Accuracy between Q1 and Q2±5%

Accuracy between Q2 and Q4±2%(±3%for hot water)

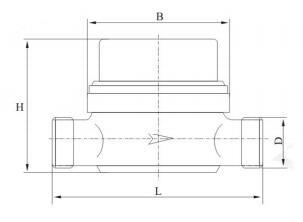

Dimensions and weight

TYPE	mm	Length	Width	Height	Connecting Thread	Weight
		mm			D	kg
LXSC-13D/15D	15	110	79.5	84	G¾B	0.485
LXSC-20D	20	130	79.5	84	G1 B	0.55
LXSC-25D	25	160	79.5	84	G1¾B	0.87

WORKING CONDITION

Working temperature for cold water meter: +0.1℃~+50℃

Working temperature for hot water meter: +0.1℃~+90℃

Head loss△P63

Working pressure≤1. 0Mpa
