Product Description
The brass water meter is a dry dial, multijet type, and magnetic drive water meter.
The vacuum seal registration allows the water meter to maintain a clear reading during long-term service.
This water meter has an anti-magnetic structure.
The measurement accuracy reaches ISO4064.
Our products are made of high quality materials with stable and reliable properties.
It is universal for easy replacement and maintenance.
Anti-foggy.
Remote transmitting devices optional.
Application
The brass water meter is designed to measure cold (hot) drinking water in residential environments. It measures the total amount of cold portable water that passes through the pipeline, as well as a remote reading transmission system with built-in sensors.
Standards
Implies with: ISO 4064(equivalen to GB/T778-2007),MID14154

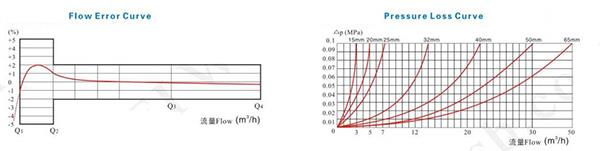

Flow Technical data
|
TYPE |
mm |
Q3/Q1 |
Q4 |
Q3 |
Q2 |
Q1 |
Min |
Max |
|
m³/h |
L/h |
m³ |
||||||
|
LXSG-15E |
15 |
80 |
3.125 |
2.5 |
50 |
31.25 |
0.00005 |
99999 |
|
100 |
40 |
25 |
||||||
|
125 |
32 |
20 |
||||||
|
160 |
25 |
15.62 |
||||||
|
LXSG-20E |
20 |
80 |
5.0 |
4.0 |
80 |
50 |
0.00005 |
99999 |
|
100 |
64 |
40 |
||||||
|
125 |
51.2 |
32 |
||||||
|
160 |
40 |
25 |
||||||
|
LXSG-25E |
25 |
80 |
7.875 |
6.3 |
126 |
78.75 |
0.00005 |
99999 |
|
100 |
100.8 |
63 |
||||||
|
125 |
80.64 |
50.4 |
||||||
|
160 |
63 |
39.73 |
||||||
|
LXSG-32E |
32 |
80 |
12.5 |
10 |
200 |
125 |
0.00005 |
99999 |
|
100 |
160 |
100 |
||||||
|
125 |
128 |
80 |
||||||
|
160 |
100 |
62.5 |
||||||
|
LXSG-40E |
40 |
80 |
20 |
16 |
320 |
200 |
0.00005 |
99999 |
|
100 |
256 |
160 |
||||||
|
125 |
204.8 |
128 |
||||||
|
160 |
160 |
100 |
||||||
|
LXSG-50E |
50 |
80 |
31.25 |
25 |
500 |
312.5 |
0.00005 |
99999 |
|
100 |
400 |
250 |
||||||
|
125 |
320 |
200 |
||||||
|
160 |
250 |
156.25 |
||||||
|
LXSG-65E |
65 |
80 |
50 |
40 |
800 |
500 |
0.00005 |
99999 |
|
100 |
640 |
400 |
||||||
|
125 |
512 |
320 |
||||||
|
160 |
400 |
250 |
||||||
Maximum Permissible error
Accuracy between Q1 and Q2±5%
Accuracy between Q2 and Q4±2%(±3%for hot water)

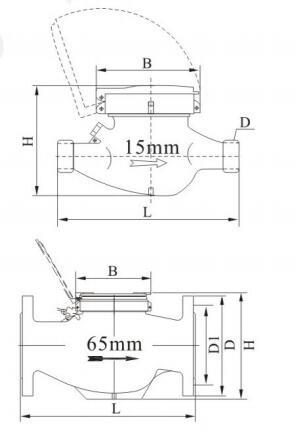

Dimensions and weight
|
TYPE |
mm |
Length |
Width |
Height |
Connecting Thread |
Weight |
|
|
mm |
D |
kg |
|||||
|
LXSG-15E |
15 |
165 |
98 |
104 |
G¾B |
1.5 |
|
|
LXSG-20E |
20 |
190/195 |
98 |
106 |
G1 B |
1.7 |
|
|
LXSG-25E |
25 |
260/225 |
103 |
115 |
G1¼B |
2.6/2.4 |
|
|
LXSG-32E |
32 |
260/230 |
103 |
115 |
G1½B |
2.8/2.7 |
|
|
LXSG-40E |
40 |
300/245 |
124 |
153 |
G2 B |
5.1/4.8 |
|
|
LXSG-50E |
50 |
300 |
124 |
153 |
G2 ½B |
5.5 |
|
|
280 |
165 |
175 |
GB4216.4FLAMGE CONNECTING CONFORM TO GB4216.4 |
D=165 D1=125 |
10 |
||
|
LXSG-65E |
65 |
280 |
165 |
179 |
D=180 D1=145 |
15 |
|
WORKING CONDITION
Working temperature for cold water meter: +0. 1 ℃-+50℃
Working temperature for hot water meter: +0. 1℃-+90 ℃
Head loss△P63
Working pressure≤1. 0Mpa
