Product Characteristics
• water meter is a dry dial, magnetically driven to withstand external magnet interference
• Multi jet.
• Brass, plastic, cast iron, stainless steel body is available
• Use high quality materials, stable and reliable characteristics
• Water Flow meter 1 Inch' super dry regisetr ensures clear readings during long-term use.
• Measurement accuracy in accordance with ISO 4064 Class C
• Universal use.
• Easy to interchange and maintain.
• Cold water meter or hot water meter.
Application
water flow meter 1 inch are designed to measure cold (hot) potable water in residential settings
Standards
Complies with: ISO 4064(equivalent to GB/T778-2007),MID14154

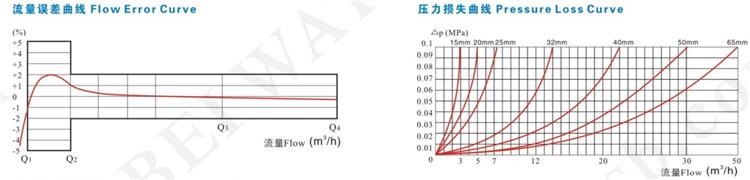

Flow Technical data
|
TYPE |
mm |
Q3/Q1 |
Q4 |
Q3 |
Q2 |
Q1 |
Min |
Max |
|
m³/h |
L/h |
m³ |
||||||
|
LXS-15E |
15 |
80 |
3.125 |
2.5 |
50 |
31.25 |
0.00005 |
99999 |
|
100 |
40 |
25 |
||||||
|
125 |
32 |
20 |
||||||
|
160 |
25 |
15.62 |
||||||
|
LXS-20E |
20 |
80 |
5.0 |
4.0 |
80 |
50 |
0.00005 |
99999 |
|
100 |
64 |
40 |
||||||
|
125 |
51.2 |
32 |
||||||
|
160 |
40 |
25 |
||||||
|
LXS-25E |
25 |
80 |
7.875 |
6.3 |
126 |
78.75 |
0.00005 |
99999 |
|
100 |
100.8 |
63 |
||||||
|
125 |
80.64 |
50.4 |
||||||
|
160 |
63 |
39.73 |
||||||
|
LXS-32E |
32 |
80 |
12.5 |
10 |
200 |
125 |
0.00005 |
99999 |
|
100 |
160 |
100 |
||||||
|
125 |
128 |
80 |
||||||
|
160 |
100 |
62.5 |
||||||
|
LXS-40E |
40 |
80 |
20 |
16 |
320 |
200 |
0.00005 |
99999 |
|
100 |
256 |
160 |
||||||
|
125 |
204.8 |
128 |
||||||
|
160 |
160 |
100 |
||||||
|
LXS-50E |
50 |
80 |
31.25 |
25 |
500 |
312.5 |
0.00005 |
99999 |
|
100 |
400 |
250 |
||||||
|
125 |
320 |
200 |
||||||
|
160 |
250 |
156.25 |
||||||
|
LXS-65E |
65 |
80 |
50 |
40 |
800 |
500 |
0.00005 |
99999 |
|
100 |
640 |
400 |
||||||
|
125 |
512 |
320 |
||||||
|
160 |
400 |
250 |
||||||
Maximum Permissible error
Accuracy between Q1 and Q2±5%
Accuracy between Q2 and Q4±2%(±3%for hot water)

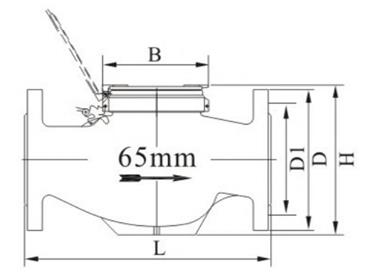

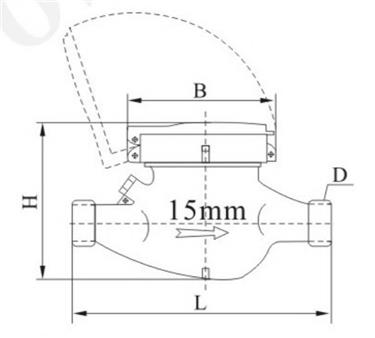

Dimensions and weight
|
TYPE |
mm |
Length |
Width |
Height |
Connecting Thread |
Weight |
|
|
mm |
D |
kg |
|||||
|
LXS-15E |
15 |
165 |
98 |
104 |
G¾B |
1.5 |
|
|
LXS-20E |
20 |
195 |
98 |
106 |
G1 B |
1.7 |
|
|
LXS-25E |
25 |
225 |
103 |
115 |
G1¼B |
2.6/2.4 |
|
|
LXS-32E |
32 |
230 |
103 |
115 |
G1½B |
2.8/2.7 |
|
|
LXS-40E |
40 |
245 |
124 |
153 |
G2 B |
5.1/4.8 |
|
|
LXS-50E |
50 |
300 |
124 |
153 |
G2½B |
5.5 |
|
|
280 |
165 |
175 |
GB4216.4 FLAMGE CONNECTING CONFORM TO GB4216.4 |
D=165 D1=125 |
10 |
||
|
LXS-65E |
65 |
280 |
165 |
179 |
D=180 D1=145 |
15 |
|
WORKING CONDITION
Working temperature for cold water meter: +0.1℃~+50℃
Working temperature for hot water meter: +0.1℃~+90℃
Head loss△P63
Working pressure≤1. 0Mpa
