Positive Displacement Water Meter

Positive Displacement Water Meter

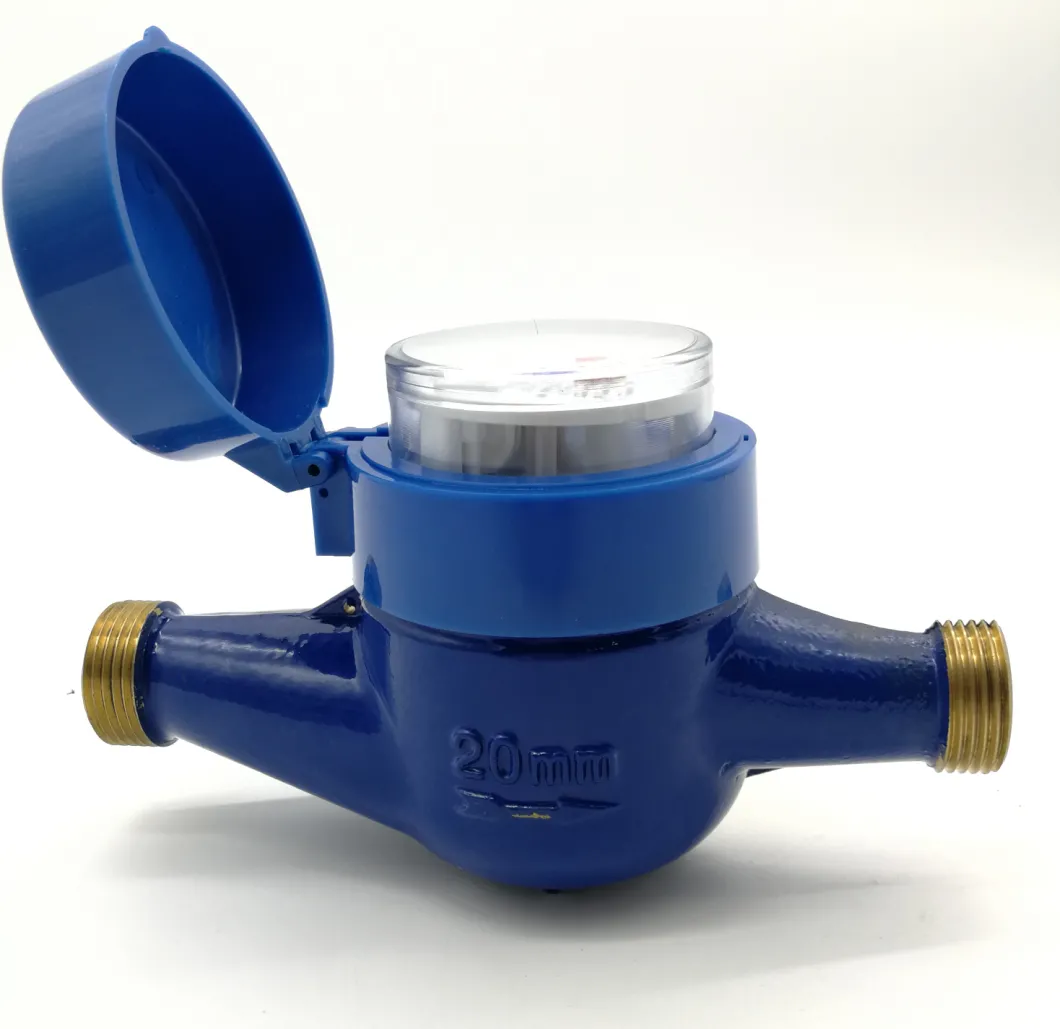

LXH-E2 is a horizontal volumetric water meter with the mechanical transmission and 320 degree ration dry register, for residential application in sizes 15mm-20mm for cold water.

Features

* Register can be 320 degree for easy reading.

* Ensures high sensitivity and accurate registration throughout a wide flow range.

* Low starting flow rate and excellent metrological performance.

* Magnetic drive, lower transmission resistance.

* Magnetic shield use for external magnetic field protection.

* Evacuated and sealed dry dial register ensures clear reading.

* Internal strainer

* Inlet strainer Standard Compliance Technical data conforms to ISO 4064 Class C, Class D, R160, R200 and R315 standard.

Optional Features

*Meter body: Brass, plastic for selecting.

*Can be equipped with reed switch option.

Model NO.	LXH-E
Nominal Diameter	15-20mm
Series	Volumetric Water Meter
Work Environment	Dry Water Meter
Working Pressure	1.0 MPa or 1.60 Map
Dial	Dry
R=Q3/Q1	160/200
Class	C/D
Pulse Output	With or without
Trademark	JIANGBEI/OEM
Transport Package	Export Carton
Specification	Brass body and brass connections
HS Code	90282010

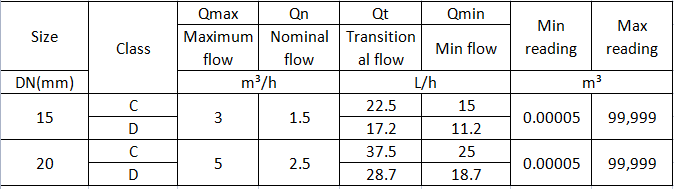

MAIN TECHNICAL DATA According to ISO4064 :2003 (Old Standard)

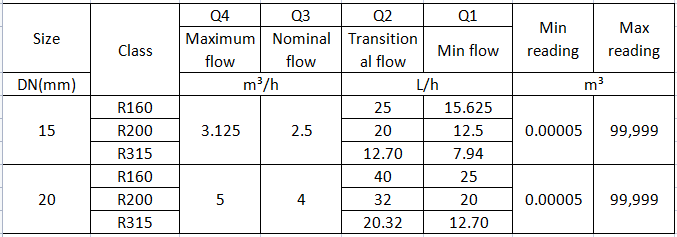

MAIN TECHNICAL DATA According to ISO4064:2014 (New Standard)

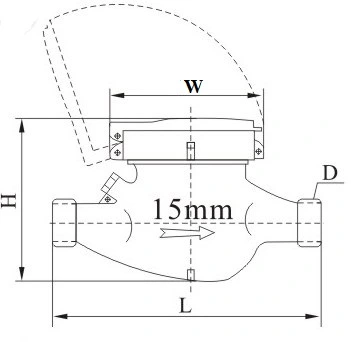

Dimensions and Weight
